WeMos D1 Mini WiFi Development Board ESP-12E

WIFi D1 mini is an integrated ESP8266 based WiFi enabled microprocessor unit + 32Mb (megabit) flash memory. WIFi D1 mini board uses the Ardunio IDE for programming, and PC need install CH340 driver. Embedded WiFI antenna is available on board

Features:
Supporting the D1 MINI
Arduino compatible, using Arduino IDE for programming
11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported (except D0)
1 analog input (3.2V max input)
Micro USB connection
Compatible with MicroPython, Arduino, nodemcu
Support the OTA online

Specifications:
– Operating Voltage: 3.3V
– Digital I/O Pins: 11
– Analog Input Pins: 1 (Max input: 3.2V)
– Clock Speed: 80MHz/160MHz
– Flash: 4M bytes

Package Includes:
1 x WeMos D1 Mini WiFi Development Board ESP-12E

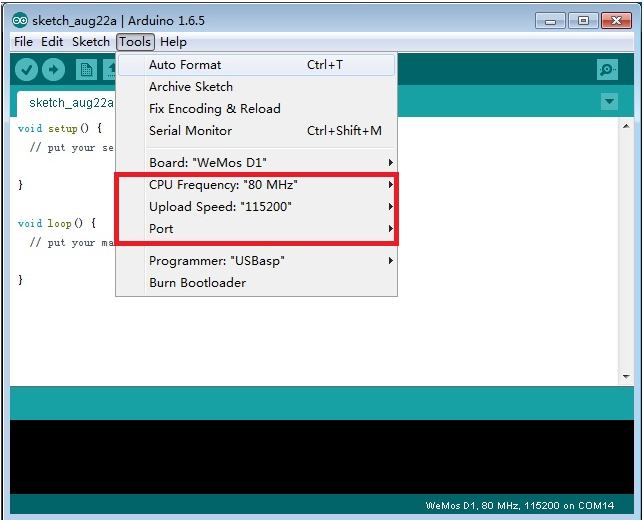

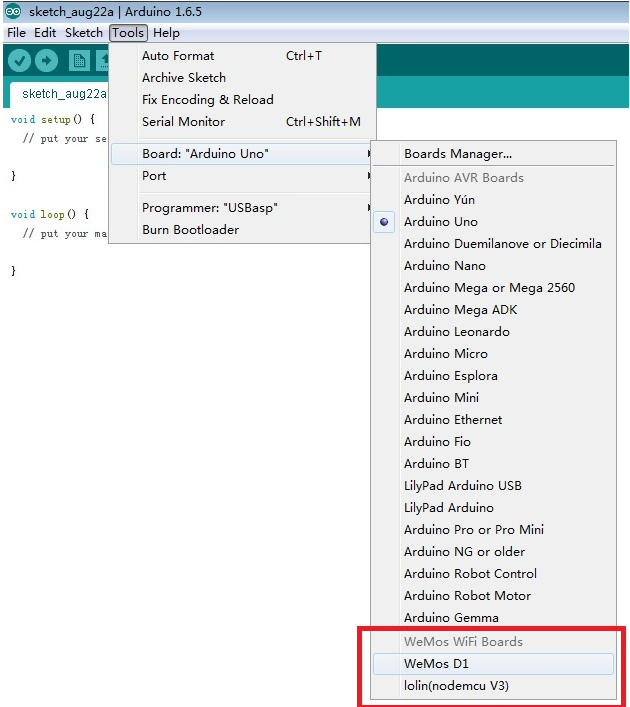

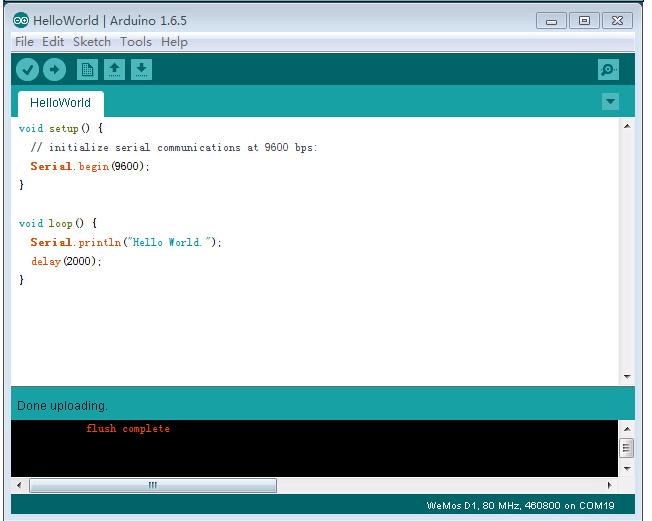

Installation:
