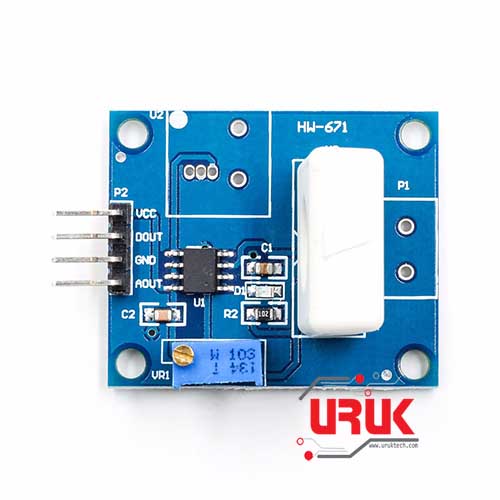

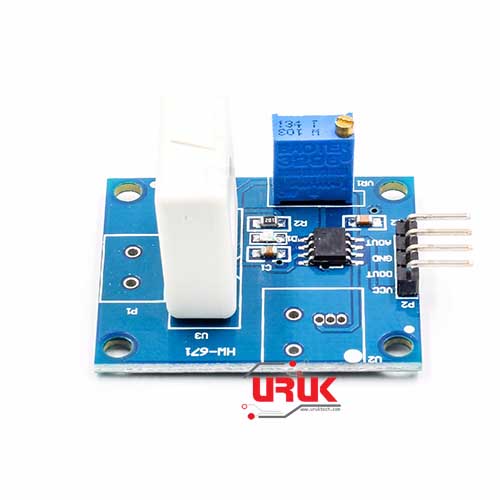

100A Hall Effect Current DC/AC Sensor Module WCS1600

This sensor could be used to measure DC/AC current; it uses the Hall technique to measure a precise current. It has two output, analog to reflect the measure current and Digital output works as an indicator for specific current value that could be set throughout the built-in potentiometer. Also, the sensor has mounting holes for easy firmware installation. The sensor can be used for Short Over-Current or as Protection Detector.

Feature & Specifications:

• Main chip: LM393 op amp, WCS1600
• Operating voltage: DC DC5V
• Digital signal output indicator;
• DC current detection range: ± 100A
• AC current detection range (RMS): 70A
• Current detection Sensitivity of 24mV / A;
• Output overcurrent signal indication;
• Critical point set overcurrent signal is adjustable, set the resolution 1.5A;
• Sample current conversion analog signal output, which can be accessed ADC, TTL level signal output, which can be accessed microcontroller IO port control

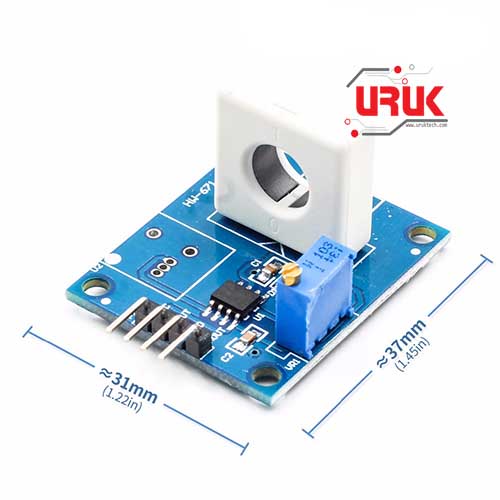

• Size: length 37mmX width 31mmX height 16.5mm

Package Includes:
1 x 100A Hall Effect Current DC/AC Sensor Module WCS1600
